High End Systems consoles

Port Lighting offers a wide variety of High End lighting consoles.

BACK TO MAIN RENTALS PAGE.




High End Hog 4 Full

The flagship console of the Hog family, Hog 4 is designed for the largest stadium shows, theme park installations, and concert tours. Hog 4 shines in any environment requiring a multi console setup and networking.

Hog 4 embraces the latest technology while retaining the familiar control surface of previous generations. Programmers will power through cueing sessions using multitouch monitors, high resolution encoders, jog shuttle wheel, LCD keys and motorized faders. Conveniences such as integrated storage drawers and keyboard, dual color surface work lights and reading lights Make Hog 4 the programmers choice!



High End Full Boar Hog 4



High End Systems’ Full Boar 4 is versatile enough to handle everything from a corporate show to a full stadium gig. The Full Boar 4 offers all the power of the flagship Hog 4, but in a more compact and affordable package, with sleek lines, raked screens, and that familiar layout.

Full Boar 4 provides two 15.6-inch multi-touch monitors and two additional video outputs. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN, and console networking. Full Boar 4 satisfies the demanding programmer, and brings the package in on budget.



High End Road Hog 4

Road Hog 4 strikes the perfect balance between performance and economy. The programming interface remains familiar, and the ergonomics of Road Hog’s compact chassis are unparalleled, while the shared HOG software environment lets the user transition across the whole range without sacrificing work flow.

Programmers will love the 22-inch, high resolution multi-touch display providing ample space for customized screen layouts with one additional video output. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN, and console networking. This Hog packs an enormous punch, despite being the most affordable Hog console in a generation!





high end hedge hog 4x

HedgeHog 4 consoles might be small but they pack a serious punch! These consoles are compact and lightweight ― perfect for new users and smaller venues. School theaters, nightclubs, corporate events, medium-scale rental events and houses of worship are the HedgeHog 4’s natural habitat. HedgeHog 4 consoles share the same programming layout and capability as their larger brothers, and can happily load show files from any console in the range.

The HedgeHog 4X has an internal 12.1-inch multi-touch monitor, ten faders and four encoder wheels. It has expanded networking capabilities and external monitor support. All 4X consoles include a license-free version of Light Converse visualization software.

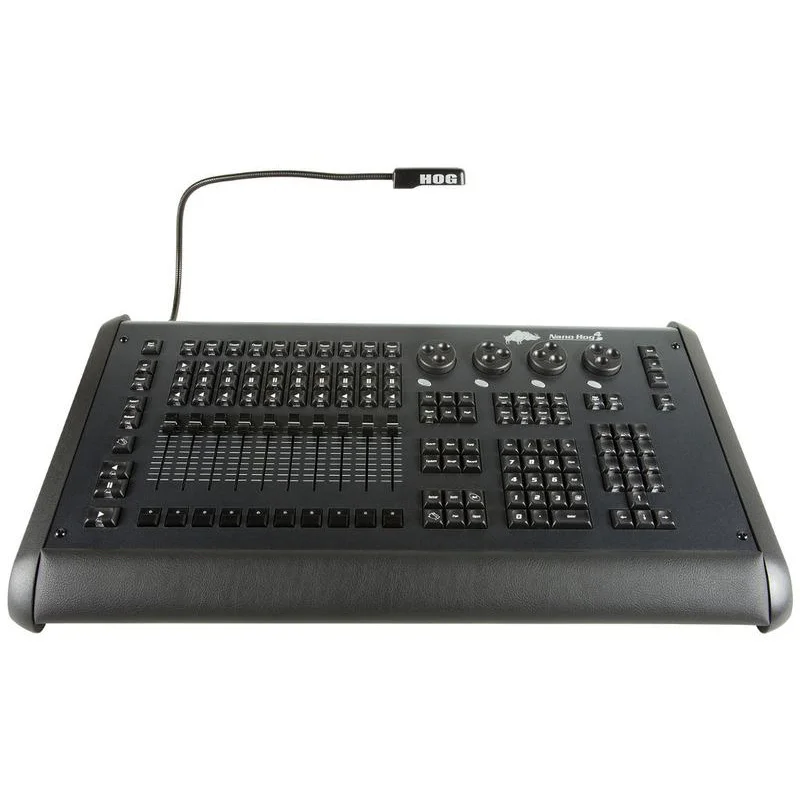

High End Nano Hog 4 (w/out Hog 4 PC)



The Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console.



High End Nano Hog 4 (w/ Hog 4 PC)

Coupled with Hog 4 PC, the Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console. Any PC running Hog 4 PC can connect to the Nano Hog 4 over USB creating a state of the art control surface. Utilizing the same front panel as the Road Hog 4, users will immediately feel at home on the Nano Hog 4. There are also two slots for the optional addition of either Super Widgets and/or MIDI/LTC Widgets.

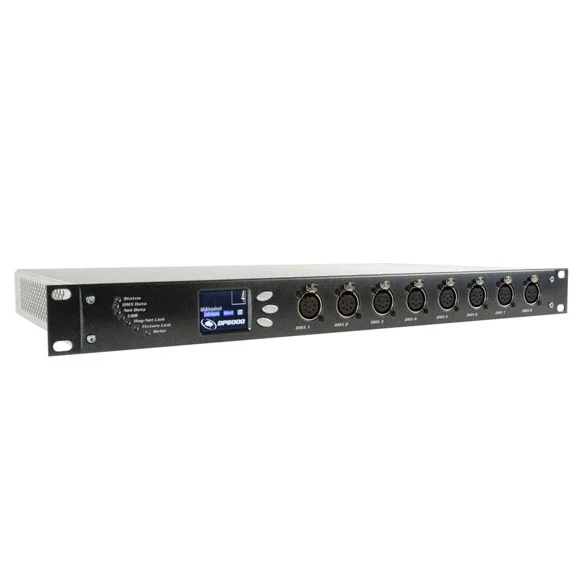

High End DMX Processor DP8000

The DMX Processor 8000 adds extraordinary DMX processing capabilities to the Hog line. With no compromise to Flying Pig Systems’ exacting standards, its longevity, quality and innovation are assured to set new standards.

The Hog DMX processor 8000 provides the output power for Hog systems. The Hog Operating System doesn’t limit you to a fixed number of DMX channels – just add as many DMX processor 8000s as needed (along with an Ethernet switch) to supply the specified number of DMX universes for the production or installation.
With an unprecedented amount of computing power, the DMX Processor 8000 manages 16 DMX universes with ease while expanding the power and reliability of the Wholehog control system as a whole. By providing standard XLR, Art-Net, and E1.3.1 (sACN) output at a steady rate, the possibilities for lighting design are truly endless with the DMX Processor 8000.



High End Hog Program Wing (USB)



The Hog Program Wing provides the perfect control surface for Hog 3PC software. The same high quality controls are used as the ones found on the Wholehog 3 console, ensuring responsive and reliable operation.



High End Playback Wing (USB)




High End Hog PC Widget USB to DMX.jpg

High End Hog PC

Hog 4PC is the ideal backup solution and perfect for automated playback.

Hog 4PC transfers the functionality of Hog lighting consoles to your personal computer. Create your own control solution to meet your particular requirements and budget. Hog 4PC offers a cost effective and flexible suite of software and hardware components that combine to produce the system you need: from the free Hog 4PC software for viewing and editing Hog 4 OS shows through to a fully fledged DMX console.



High End Hog MIDI LTC Widget

Packaged in a sleek, black metal package, the Wholehog MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS consoles and any Hog 4 PC. When used in conjunction with Hog 4, Full Boar 4, Road Hog 4 , the LTC Widget provides a powerful level of timecode functionality.

You are now able to connect up to 8 Midi/ LTC widgets to your console or DMX Processor 8000, allowing for multiple timecode sources to be brought into the console. By adding more DMX Processor 8000’s you will be able to expand this further.

This configuration provides an excellent solution for backup and timecoded playback-only applications. In addition, the MIDI in/out/thru allow direct connection of MIDI for show control and backup purposes.



High End Hog 4 Widget



High End Hog 3 PC Widget

Packaged in a sleek, black metal package, the Wholehog DMX Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Up to eight DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only four DMX Widgets can be connected to the Road Hog 4.

This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4,users can configure powerful control solutions that precisely suit their needs and budgets.

For Hog 4 PC users, attaching 1 DMX Widget also unlocks 1 universe of DMX over Art-Net and E1.3.1 (sACN). Users can connect up to 8 total DMX Widgets to Hog 4 PC to unlock a total of 8 Art-Net and sACN universes.
