High End Systems Controls

HIGH END UNIT HPU

HPU is the hybrid processor unit for the Hog 4 family. One HPU unit can act either as a rack-mounted console or as a DMX Processor connected to another Hog 4 family console product, capable of 64 universes of output from a single 2U 19-inch rack mount device. With all the power of a Hog 4 console, the HPU is designed for those applications where permanent hardware front-panel interfaces are not necessary, such as cruise ships, theme parks, and architectural lighting installations. In console mode, the HPU can also act as a backup to any Hog 4 family console.

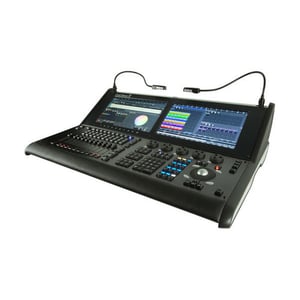

HIGH END FULL BOAR HOG 4

High End Systems’ Full Boar 4 is versatile enough to handle everything from a corporate show to a full stadium gig. The Full Boar 4 offers all the power of the flagship Hog 4, but in a more compact and affordable package, with sleek lines, raked screens, and that familiar layout.

Full Boar 4 provides two 15.6-inch multi-touch monitors and two additional video outputs. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN, and console networking. Full Boar 4 satisfies the demanding programmer, and brings the package in on budget.

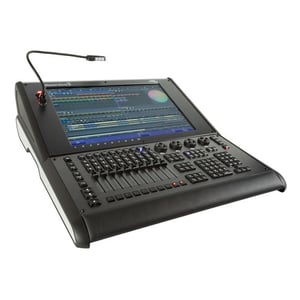

HIGH END ROAD HOG 4

Road Hog 4 strikes the perfect balance between performance and economy. The programming interface remains familiar, and the ergonomics of Road Hog’s compact chassis are unparalleled, while the shared HOG software environment lets the user transition across the whole range without sacrificing work flow.

Programmers will love the 22-inch, high resolution multi-touch display providing ample space for customized screen layouts with one additional video output. Four on-board DMX universes drive the rig, and two gigabit Ethernet ports are provided for Art-Net, sACN, and console networking. This Hog packs an enormous punch, despite being the most affordable Hog console in a generation!

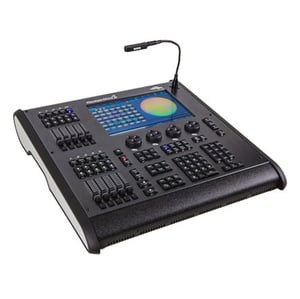

HIGH END HEDGE HOG 4X

HedgeHog 4 consoles might be small but they pack a serious punch! These consoles are compact and lightweight ― perfect for new users and smaller venues. School theaters, nightclubs, corporate events, medium-scale rental events and houses of worship are the HedgeHog 4’s natural habitat. HedgeHog 4 consoles share the same programming layout and capability as their larger brothers, and can happily load show files from any console in the range.

The HedgeHog 4X has an internal 12.1-inch multi-touch monitor, ten faders and four encoder wheels. It has expanded networking capabilities and external monitor support. All 4X consoles include a license-free version of Light Converse visualization software.

HIGH END NANO HOG 4 (W/OUT HOG 4 PC)

The Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console.

HIGH END NANO HOG 4 (W/ HOG 4 PC)

Coupled with Hog 4 PC, the Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console. Any PC running Hog 4 PC can connect to the Nano Hog 4 over USB creating a state of the art control surface. Utilizing the same front panel as the Road Hog 4, users will immediately feel at home on the Nano Hog 4. There are also two slots for the optional addition of either Super Widgets and/or MIDI/LTC Widgets.

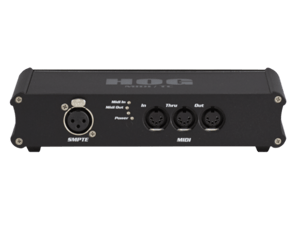

HIGH END HOG MIDI LTC WIDGET

Packaged in a sleek, black metal package, the Wholehog MIDI/LTC Widget provides a single Linear Timecode input and MIDI in/out/thru for any Hog 4 OS consoles and any Hog 4 PC. When used in conjunction with Hog 4, Full Boar 4, Road Hog 4 , the LTC Widget provides a powerful level of timecode functionality.

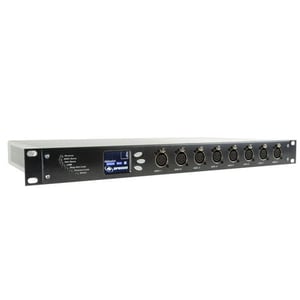

You are now able to connect up to 8 Midi/ LTC widgets to your console or DMX Processor 8000, allowing for multiple timecode sources to be brought into the console. By adding more DMX Processor 8000’s you will be able to expand this further.

This configuration provides an excellent solution for backup and timecoded playback-only applications. In addition, the MIDI in/out/thru allow direct connection of MIDI for show control and backup purposes.

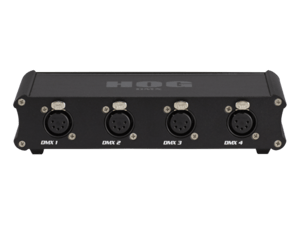

HIGH END USB DMX SUPER WIDGET

The USB DMX Super Widget provides four universes of DMX-512 output from any Hog 4 console or Hog 4 PC. Up to two DMX Super Widgets may be connected at once via a USB Hub to provide eight full universes of DMX-512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only one USB DMX Super Widget can be connected to the Road Hog 4.

With Hog 4 PC, attaching USB DMX Super Widgets also unlocks the corresponding universes of Art-Net and sACN.
